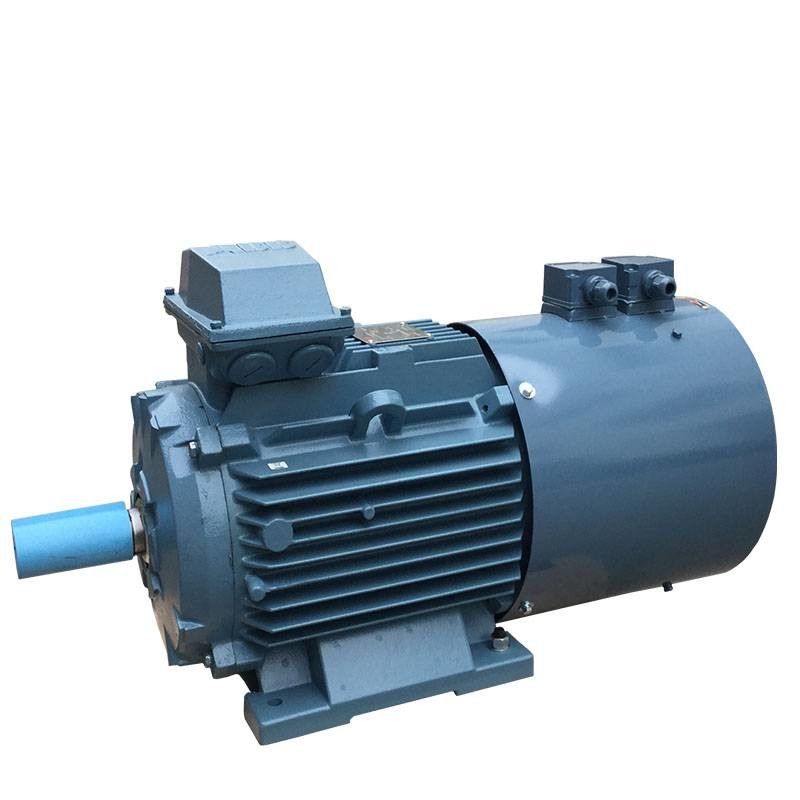

YE3 Series 3 Phase 2 Pole Induction Motor Asynchronous Electric Motor
3 Fase Asynchronous Induction Motor Fitur:
Motor seri ini memiliki banyak kelebihan, termasuk profil yang indah, efisiensi tinggi dan penghematan energi, kelas F terisolasi, kelas perlindungan adalah IP55, kebisingan rendah, getaran sedikit, berjalan dengan lancar.
3 Fase Asynchronous Induction Motor Aplikasi:
Tujuan umum termasuk mesin pemotong, pompa, kipas angin, konveyor, mesin alat kerja pertanian dan proses makanan dll. Terutama cocok untuk pasar OEM dan Penjualan Kembali (Distribusi),Seri ini memberikan keseimbangan optimal antara fitur produk standar, berat yang berkurang, ketersediaan cepat dan harga yang kompetitif.
Spesifikasi motor induksi fase 3 kutub 2:
|
型 号 Jenis |
功率 kW |
额定 电流 A |
转速 r/menit |
efisiensi Ef.% |
功率 Faktor P.F. |
额定 转矩 N.m |
堵转转矩 额定转矩 Tst TN |
堵转 arus listrik 额定 arus listrik Itu IN |
Maksimum torsi 额定转矩 Tmax TN |
噪声 dB ((A) |
| 同步 转速 3000 r/min | ||||||||||
| YE3-63M1-2 | 0.18 | 0.53 | 2720 | 63.9 | 0.80 | 0.63 | 2.2 | 5.5 | 2.2 | 61 |
| YE3-63M2-2 | 0.25 | 0.70 | 2720 | 67.1 | 0.81 | 0.88 | 2.2 | 5.5 | 2.2 | 61 |
| YE3-71M1-2 | 0.37 | 1.0 | 2740 | 69.0 | 0.81 | 1.29 | 2.2 | 6.1 | 2.2 | 62 |
| YE3-71M2-2 | 0.55 | 1.4 | 2740 | 72.3 | 0.82 | 1.92 | 2.2 | 6.1 | 2.2 | 62 |
| YE3-80M1-2 | 0.75 | 1.7 | 2870 | 80.7 | 0.82 | 2.50 | 2.2 | 7.0 | 2.3 | 62 |
| YE3-80M2-2 | 1.1 | 2.4 | 2875 | 82.7 | 0.83 | 3.65 | 2.2 | 7.3 | 2.3 | 62 |
| YE3-90S-2 | 1.5 | 3.2 | 2880 | 84.2 | 0.84 | 4.97 | 2.2 | 7.6 | 2.3 | 67 |
| YE3-90L-2 | 2.2 | 4.6 | 2880 |
85.9 9 |
0.85 | 7.30 | 2.2 | 7.6 | 2.3 | 67 |
| YE3-100L-2 | 3 | 6.0 | 2880 | 87.1 | 0.87 | 9.95 | 2.2 | 7.8 | 2.3 | 74 |
| YE3-112M-2 | 4 | 7.8 | 2915 | 88.1 | 0.88 | 13.1 | 2.2 | 8.3 | 2.3 | 77 |
| YE3-132S1-2 | 5.5 | 10.6 | 2935 | 89.2 | 0.88 | 17.9 | 2.0 | 8.3 | 2.3 | 79 |
| YE3-132S2-2 | 7.5 | 14.4 | 2930 | 90.1 | 0.88 | 24.4 | 2.0 | 7.9 | 2.3 | 79 |
| YE3-160M1-2 | 11 | 20.6 | 2950 | 91.2 | 0.89 | 35.6 | 2.0 | 8.1 | 2.3 | 81 |
| YE3-160M2-2 | 15 | 27.9 | 2945 | 91.9 | 0.89 | 48.6 | 2.0 | 8.1 | 2.3 | 81 |
| YE3-160L-2 | 18.5 | 34.2 | 2945 | 92.4 | 0.89 | 60.0 | 2.0 | 8.2 | 2.3 | 81 |
| YE3-180M-2 | 22 | 40.5 | 2950 | 92.7 | 0.89 | 71.2 | 2.0 | 8.2 | 2.3 | 83 |
| YE3-200L1-2 | 30 | 54.9 | 2965 | 93.3 | 0.89 | 96.6 | 2.0 | 7.6 | 2.3 | 84 |
| YE3-200L2-2 | 37 | 67.4 | 2965 | 93.7 | 0.89 | 119 | 2.0 | 7.6 | 2.3 | 84 |
| YE3-225M-2 | 45 | 80.8 | 2965 | 94.0 | 0.90 | 145 | 2.0 | 7.7 | 2.3 | 86 |
| YE3-250M-2 | 55 | 98.5 | 2975 | 94.3 | 0.90 | 177 | 2.0 | 7.7 | 2.3 | 89 |
| YE3-280S-2 | 75 | 134 | 2975 | 94.7 | 0.90 | 241 | 1.8 | 7.1 | 2.3 | 91 |
| YE3-280M-2 | 90 | 160 | 2975 | 95.0 | 0.90 | 289 | 1.8 | 7.1 | 2.3 | 91 |
| YE3-280M1-2 | 110 | 195 | 2975 | 95.2 | 0.90 | 353 | 1.8 | 7.1 | 2.0 | 91 |
Jenis pemasangan konvensional dan ukuran bingkai yang cocok diberikan dalam tabel berikut ((dengan √√)
|
机座号 Bingkai |
基本安装结构 tipe dasar |
派生的安装形式 jenis turunan |
||||||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 | ||
| 63 ¥112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| 132 ¢ 160 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - | |
| 180 ¥280 | √ | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - | |
| 315 ¢ 355 | √ | - | √ | √ | - | - | - | - | - | - | - | - | - | - | - | |
"√" menunjukkan jenis struktur yang dapat diproduksi. Saat memesan motor, jika tidak ada penjelasan yang diberikan, kotak persimpangan adalah outlet kanan tipe sisi.
2 kutub 3 fase motor induksiDimensi
|
机座号 Bingkai |
极数 Polandia |
安装 尺 寸 Dimensi pemasangan | Ukuran bentuk keseluruhan Dimensi | ||||||||||||
| D | E | F | G | M | N | P | R | S | T | AC | AD | HF | L | ||
| 180M | 2,4,6,8 | 48 | 110 | 14 | 42.5 | 300 | 250 | 350 | 0 | 4-Φ19 | 5 | 360 | 265 | 500 | 745 |
| 180L | 785 | ||||||||||||||
| 200 liter | 2,4,6,8 | 55 | 110 | 16 | 49 | 350 | 300 | 400 | 0 | 4-Φ19 | 5 | 400 | 305 | 570 | 845 |
| 225S | 4,8 | 60 | 140 | 18 | 53 | 400 | 350 | 450 | 0 | 8-Φ19 | 5 | 450 | 325 | 615 | 905 |
| 225M | 2 | 55 | 110 | 16 | 49 | 900 | |||||||||
| 4,6,8 | 60 | 140 | 18 | 53 | 930 | ||||||||||
| 250M | 2 | 60 | 140 | 18 | 53 | 500 | 450 | 550 | 0 | 8-Φ19 | 5 | 510 | 380 | 715 | 1025 |
| 4,6,8 | 65 | 58 | |||||||||||||
| 280S | 2 | 65 | 140 | 18 | 58 | 500 | 450 | 550 | 0 | 8-Φ19 | 5 | 550 | 395 | 760 | 1080 |
| 4,6,8 | 75 | 20 | 67.5 | ||||||||||||
| 280M | 2 | 65 | 18 | 58 | 1130 | ||||||||||
| 4,6,8 | 75 | 20 | 67.5 | ||||||||||||
| 315S | 2 | 65 | 140 | 18 | 58 | 600 | 550 | 660 | 0 | 8-Φ24 | 6 | 630 | 540 | 970 | 1310 |
| 4,6,8,10 | 80 | 170 | 22 | 71 | 1340 | ||||||||||
| 315M | 2 | 65 | 140 | 18 | 58 | 1345 | |||||||||
| 4,6,8,10 | 80 | 170 | 22 | 71 | 1375 | ||||||||||
| 315L | 2 | 65 | 140 | 18 | 58 | 1420 | |||||||||
| 4,6,8,10 | 80 | 170 | 22 | 71 | 1450 | ||||||||||
| 355M | 2 | 75 | 140 | 20 | 67.5 | 740 | 680 | 800 | 0 | 8-Φ24 | 6 | 715 | 645 | 1135 | 1530 |
| 4,6,8,10 | 95 | 170 | 25 | 86 | 1560 | ||||||||||
| 355L/L1 | 2 | 75 | 140 | 20 | 67.5 | 1640 | |||||||||
| 4,6,8,10 | 95 | 170 | 25 | 86 | 1670 | ||||||||||
| 355L2/L3 | 2 | 80 | 170 | 22 | 71 | 1670 | |||||||||
| 4,6,8,10 | 110 | 210 | 28 | 100 | 1710 | ||||||||||
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
