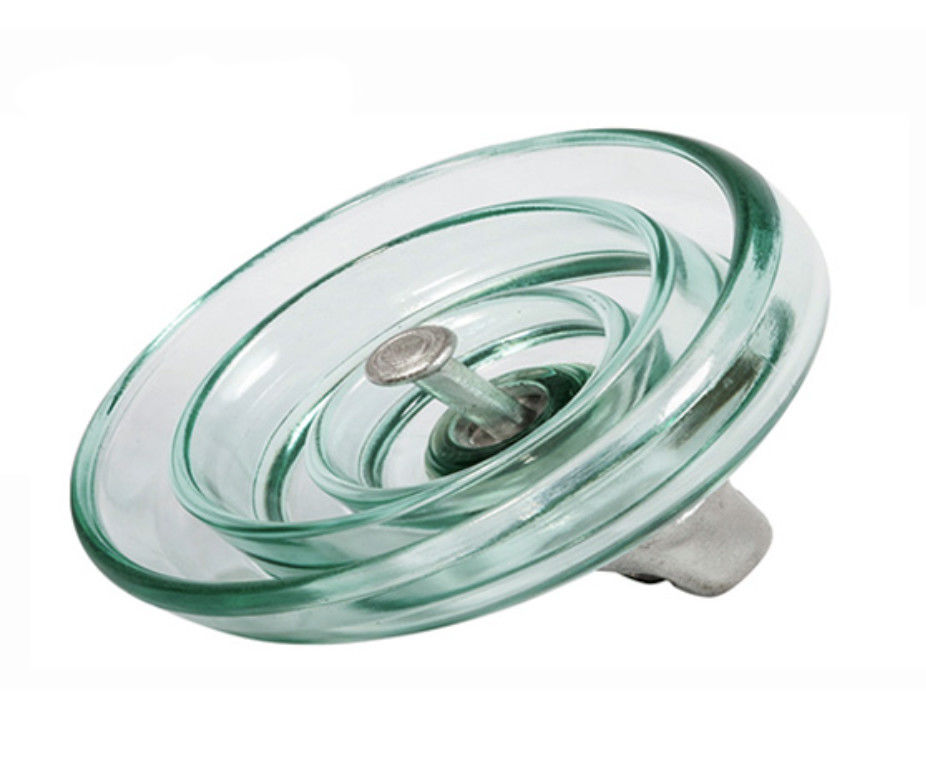

Insulator Suspensi Plastik yang Diperkuat Kaca yang Dikeraskan Powerline Insulator Kaca Insulator Disk
-
Menyoroti
Isolator cakram kaca keras 1000KV
,Isolator Disk Diperkuat
,Isolator suspensi 10KV
-
Nama produkInsulator Kaca Powerline
-
AplikasiTransmisi Daya Tegangan Tinggi, Isolasi, Instalasi Listrik
-
WarnaTransparan/Biru/Hijau
-
Tingkat Tegangan10KV-1000KV
-
BahanKaca yang Dikeraskan
-
Metode koneksiTipe Palung
-
Tempat asalCina
Insulator Suspensi Plastik yang Diperkuat Kaca yang Dikeraskan Powerline Insulator Kaca Insulator Disk
Insulator Suspensi Plastik yang Diperkuat Kaca yang Dikeraskan Powerline Insulator Kaca Insulator Disk
Isolator Kaca Listrik Gambaran umum
Dalam listrik dan elektronik,Isolator cakramJika banyak konduktor yang dekat satu sama lain, isolator melakukan pekerjaan mengisolasi mereka.Ini mencegah kasus-kasus sirkuit pendekDalam saluran transmisi udara, insulator digunakan untuk mencegah kebocoran arus listrik.
Spesifikasi Isolator Lini Listrik Kaca
|
Nama produk danmodel spesifikasi |
Tingkat tegangan ((KV) | Nama produk dan model spesifikasi | Tingkat tegangan ((KV) | ||
| Tipe tahan noda | Isolator cakram U70BLP | 10KV-330KV | Tipe standar | Isolator cakram U40B | 10KV-66KV |
| Isolator cakram U70BLP1 | 10KV-330KV | Isolator cakram U70BS | 10KV-330KV | ||
| Isolator cakram U70BLP2 | 10KV-330KV | Isolator cakram U70BL | 10KV-330KV | ||
| Isolator cakram U80BLP | 10KV-330KV | Isolator cakram U100BS | 10KV-330KV | ||
| Isolator cakram U80BLP1 | 10KV-330KV | Isolator cakram U100BL | 10KV-330KV | ||
| Isolator cakram U100BLP | 10KV-330KV | Isolator cakram U120B | 10KV-330KV | ||
| Isolator cakram U100BLP1 | 10KV-330KV | Isolator cakram U160BS | 10KV-500KV | ||
| Isolator cakram U100BLP2 | 10KV-330KV | Isolator cakram U160BM | 10KV-500KV | ||
| Isolator cakram U120BP | 10KV-330KV | Isolator cakram U160BL | 10KV-500KV | ||
| Isolator cakram U120BP1 | 10KV-330KV | Isolator cakram U210B | 10KV-500KV | ||
| Isolator cakram U120BP2 | 10KV-330KV | Isolator cakram U240B | 10KV-500KV | ||
| Isolator cakram U160BMP | 10KV-500KV | Isolator cakram U300B | 10KV-500KV | ||
| Isolator cakram U160BLP | 10KV-500KV | Isolator cakram U420B | 10KV-500KV | ||
| Isolator cakram U160BMP1 | 10KV-500KV | Isolator cakram U530B | 10KV-1000KV | ||
| Isolator cakram U160BLP1 | 10KV-500KV | Isolator cakram U550B | 10KV-1000KV | ||
| Isolator cakram U210BP | 10KV-500KV | Jenis payung ganda | Isolator cakram U70BLD | 10KV-330KV | |
| Isolator cakram U210BP1 | 10KV-500KV | Isolator cakram U70BSD | 10KV-330KV | ||
| Isolator cakram U240BP | 10KV-500KV | Isolator cakram U100BLD | 10KV-330KV | ||
| Isolator cakram U240BP1 | 10KV-500KV | Isolator cakram U100BSD | 10KV-330KV | ||
| Isolator cakram U240BP2 | 10KV-500KV | Isolator cakram U120BLD | 10KV-330KV | ||
| Isolator cakram U300BP | 10KV-500KV | Isolator cakram U160BLD | 10KV-500KV | ||
| Isolator cakram U300BP1 | 10KV-500KV | Isolator cakram U160BSD | 10KV-500KV | ||
| Jenis aerodinamis | Isolator cakram U70BSM | 10KV-330KV | Isolator cakram U160BMD | 10KV-500KV | |
| Isolator cakram U70BLM | 10KV-330KV | Isolator cakram U210BD | 10KV-500KV | ||
| Isolator cakram U100BSM | 10KV-330KV | Isolator cakram U240BD | 10KV-500KV | ||
| Isolator cakram U100BLM | 10KV-330KV | Jenis tanah | Isolator cakram U70C | 10KV-330KV | |
| Isolator cakram U120BLM | 10KV-330KV | Isolator cakram U70CN | 10KV-330KV | ||
| Isolator cakram U160BSM | 10KV-500KV | Isolator cakram U100C | 10KV-330KV | ||
| Isolator cakram U160BMM | 10KV-500KV | Isolator cakram U100CN | 10KV-330KV | ||
| Isolator cakram U160BLM | 10KV-500KV | ||||
| Isolator cakram U210BM | 10KV-500KV | ||||
| Isolator cakram U240BM | 10KV-500KV | ||||
Aplikasi
Pengisolator Disk Suspensidigunakan pada jalur transmisi tegangan tinggi dan tegangan rendah. 1. tiang listrik. 2. generator. 3. trafo 4. jalur kereta api 5. motor listrik
Produk kami dijual di seluruh dunia. Anda dapat yakin dengan seluruh proses produk kami.
